150 TONS HYDRAULIC WORKSHOP PRESS (with table)

WorkshopPress.com manufactures 150 Tons hydraulic workshop presses with a table. With a table, you are able to connect a mould to the hydraulic press and use the pressing force for shaping the material with the mould (mold/die).

PRODUCT CODE: WSP-WIT-150

GENERAL FEATURES

Workshop Presses are standard-type presses you can find ready for the shipment in our factory most of the time. However, we can customize the workshop presses according to the customer request. So every detail and property of the workshop press can be changed.

If you are using Workshop Presses with Table, you will be available to connect a shaping, cutting, forming die (mould/mold) to the press for your workshop operations.

STANDARD EQUIPMENT

  • Chrome Plated Cylinder
  • Welded Steel Frame
  • Oil Pressure Gauge
  • Pressure Adjustment
  • User Manual
  • 2 Years of Warranty
  • CE Certification

OPTIONAL EQUIPMENT

  • Pressure Regulator
  • V Block
  • Automatic Control
  • Foot Pedal
  • Table

PHOTOS

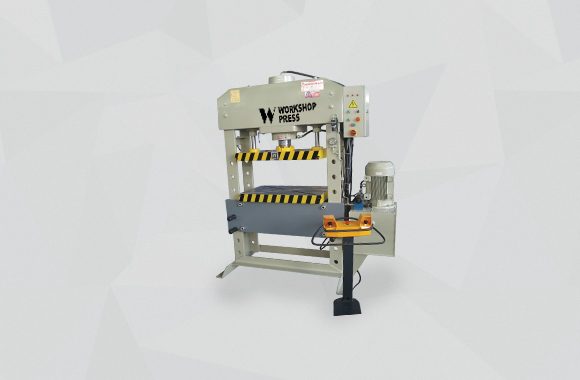

Photos of 150 Tons Motor Operated Hydraulic Workshop Press with Table

  • HIGH QUALITY PRODUCTION

    We produce every workshop press with the same high quality standards.
  • WIDE USAGE AREAS

    It is used in a wide range of production

TECHNICAL PROPERTIES

150 Tons Workshop Press with Table | WSP-WIT-150

WORKSHOP PRESS
150 TON WITH TABLE
PROPERTY
(Dimension / Weight / Volume etc.)
Capacity (Ton) 150
Table Size (mm) 1000x600
Stroke (mm) 400
Working Height (mm) 600
Motor Power (kW) 5.5
Pump (lt) 15.0
Approach Speed (mm/s) 6
Return Speed (mm/s) 10
Working Speed (mm/s) 7
Length (mm) 1000
Width (mm) 1400
Height (mm) 2300
Weight (mm) 2400



Why don't you get an offer for 150 Tons Motor Operated Workshop Press with a table?
